Raft/Mat Foundation Design in Sault Ste Marie

The soil profile in the city's north end versus the canal district can feel like two different worlds. Near the old steel plant site, we often hit deep pockets of loose fill and silty sand. Head south toward the waterfront along St. Marys River and the stiff glacial till sits much closer to grade. A raft/mat foundation design in Sault Ste Marie bridges that gap. It spreads structural loads wide across these erratic deposits and keeps differential settlement under control. With frost penetration reaching over four feet in a typical Sault Ste Marie winter, a properly designed mat also eliminates the risk of isolated footing heave. Our team works with the local geology daily and understands how sensitive Champlain Sea-derived clays behave under load. For sites with borderline bearing capacity we rely on in-situ permeability testing to confirm drainage conditions before finalizing slab thickness.

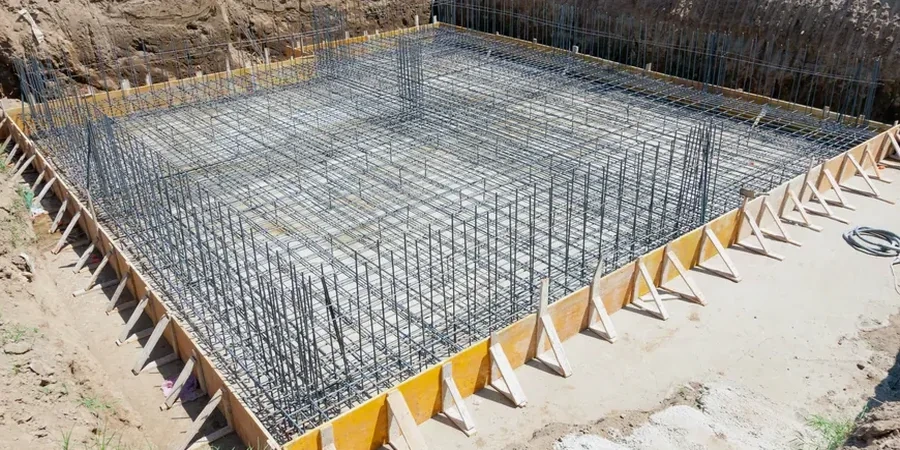

A raft spreads building loads wide across Sault Ste Marie's patchy soils, avoiding the settlement risks that isolated footings can't handle.

How we work

In this region, what we see most often is a false sense of security with stiff upper crust clays. They feel solid during a summer site walk but soften noticeably once excavation exposes them to moisture. That seasonal behavior drives our raft/mat foundation design parameters across Sault Ste Marie projects. We set minimum slab embedment to get below the active frost zone. We integrate thickened edge beams where perimeter loads concentrate. And we specify low water-cement ratio concrete with air entrainment for freeze-thaw durability under CSA A23.3. On commercial builds, the design often ties into a plate load test to verify modulus of subgrade reaction before pouring. Steel reinforcement layout accounts for both uniform bearing and point loads from columns or equipment pads. We also check punching shear at concentrated load locations using two-way shear provisions from the NBCC. The result is a foundation system that works with the ground, not against it.

Local considerations

The extreme temperature swings in Sault Ste Marie put foundation concrete through a punishing cycle. Forty-below winter nights followed by spring thaws create saturated ground conditions that erode subgrade stiffness. A raft/mat foundation design here has to account for that seasonal softening, especially on clay-rich sites. Ignoring frost action leads to differential heave at the slab edges while the core stays put. We also contend with variable fill zones across older parts of town. The legacy of industrial backfill along former rail corridors means undocumented debris sometimes sits right at footing depth. A raft bridges those soft spots by distributing load across a wide footprint. We specify continuous vapor barriers and capillary breaks to cut off rising damp. Steel schedules include extra bottom reinforcement in tension zones where subgrade support may drop after wet cycles. In Sault Ste Marie, the biggest risk isn't one thing failing suddenly. It's slow, uneven movement over multiple freeze-thaw years.

Technical parameters

Parameter	Typical value
Slab thickness (residential)	200 – 300 mm
Slab thickness (commercial/industrial)	400 – 750 mm
Typical embedment depth	1.4 – 1.8 m (below frost line)
Subgrade modulus (ks) range	10 – 40 MPa/m
Concrete compressive strength	30 – 40 MPa (CSA A23.3)
Reinforcement grade	400W or 500W welded wire/rebar

Other technical services

Geotechnical Site Characterization

Drilling, sampling, and lab testing of the native glacial till and clay units to establish bearing capacity, settlement potential, and frost susceptibility for your mat foundation design.

Structural Raft Design & Detailing

Complete reinforced concrete mat design per CSA A23.3, including edge beam detailing, construction joint layout, and coordination with your structural engineer of record.

Frequently asked questions

When does a site in Sault Ste Marie need a raft instead of strip footings?

When the allowable bearing pressure drops below about 75 kPa or when settlement estimates exceed 25 mm total or 15 mm differential. Sites with more than 1.5 meters of uncontrolled fill also push the decision toward a mat.

What is the typical cost range for raft/mat foundation design in Sault Ste Marie?

Design fees typically run between CA$1,620 and CA$5,600 depending on structure complexity, footprint size, and how much geotechnical data is already available. A simple residential mat falls on the lower end; commercial or irregular footprints with multiple point loads reach the upper range.

How do you verify the subgrade before pouring the mat?

We inspect the exposed formation level for soft spots or standing water. Plate load testing gives us a direct modulus reading. On larger pads we run nuclear density checks on the compacted granular base course to confirm uniform support.

Does a raft foundation eliminate the need for deep foundations in Sault Ste Marie?

Not always. On very soft clay deposits thicker than about 5 meters, piles may still be more economical. The raft handles moderate conditions well, but deep organic soils near some creek crossings still demand a pile-supported slab.
